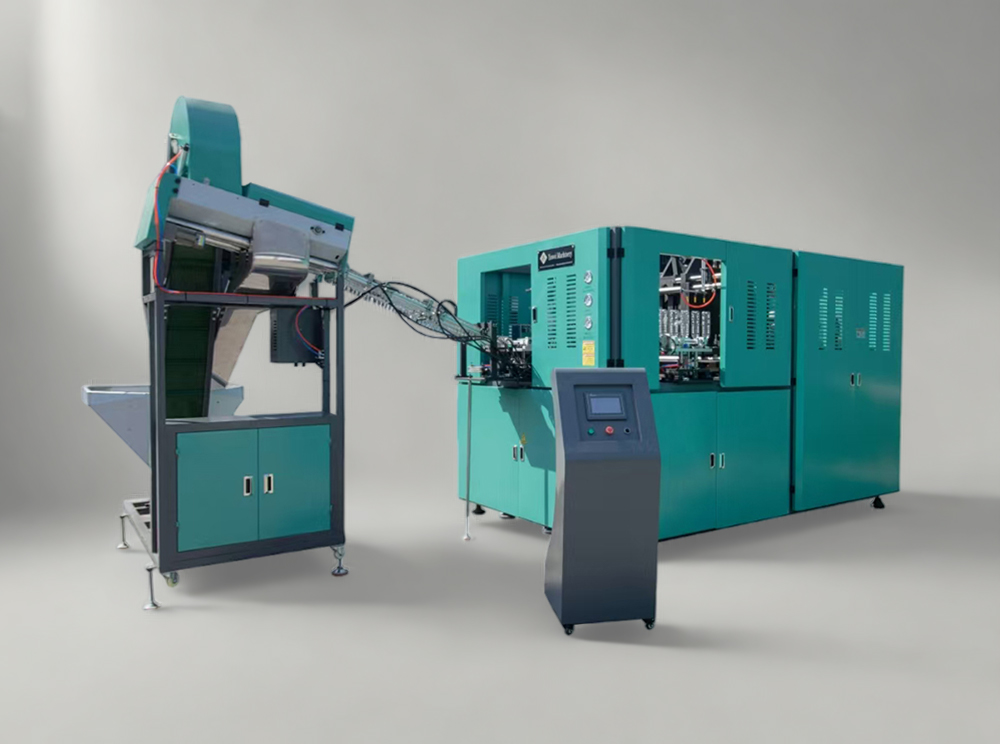

Fully Automatic PET Blow Moulding Machine

• Higher Bottle Quality
• Close to 0 mistake
• 200BPH/cavity Higher Productivity
• 20% Reduced Energy
• Easier Operation and Maintenance

Inquiry

Model		Unit	YW-L2MS	YW-L3MS	YW-L4
Clamping System	Cavity Quantity	cavities	2	3	4
	Clamping Force	KG	3000	3500	4000
	Mould Opening Stroke	mm	90	125	90
	Stretching Rod Stroke	mm	350	350	260
	Stretching Rod Dia.	mm	12	12	10
	Bottom Mould Stroke	mm	50	50	50
	Pitch Distance	mm	114.3	114.3	76.2
	Preform Holder Quantity	PCS	58	72	92
Container Spec.	Max.Container Volume	ml	2000	2000	2000
	Max.Container Height	mm	350	350	260
	Max.Container Diameter	mm	100	100	70
	Max Preform Height	mm	100	140	100
	Max.Neck Diameter	mm	38	38	38
Productivity for 600ml		BPH	3000-3600	4000-4200	4800-5200
Productivity for 1500ml		BPH	2200-2400	3400-3600
Electrical System	Heating Oven Qty	Zone	2	2	2
	Number of Lamp	PCS	4*10	4*10	4*6
	Heating Power	KW	30	60	36
	Installed Power	KW	36	66	42
	Voltage		Customized	Customized	Customized
	Actual Power	KW	15-20	30-35	20-25
Air System	Operating Pressure	Mpa	0.7-0.9	0.7-0.9	0.7-0.9
	Blowing Pressure	Mpa	2.5-3.0	2.5-3.0	2.5-3.0
	High Pressure Air Consumption	L/min	2.4/30	3.6/30	3.6/30
Chiller System	Temperature Range	Degree	9-13	9-13	9-13
	Pressure	Mpa	0.4	0.4	0.4
	Capacity	HP	5	10	5
Machine	Dimensions	M	3.21.72.08	3.4522.08	3.761.72.08
Machine	Weight	KG	3000	3500	3500
